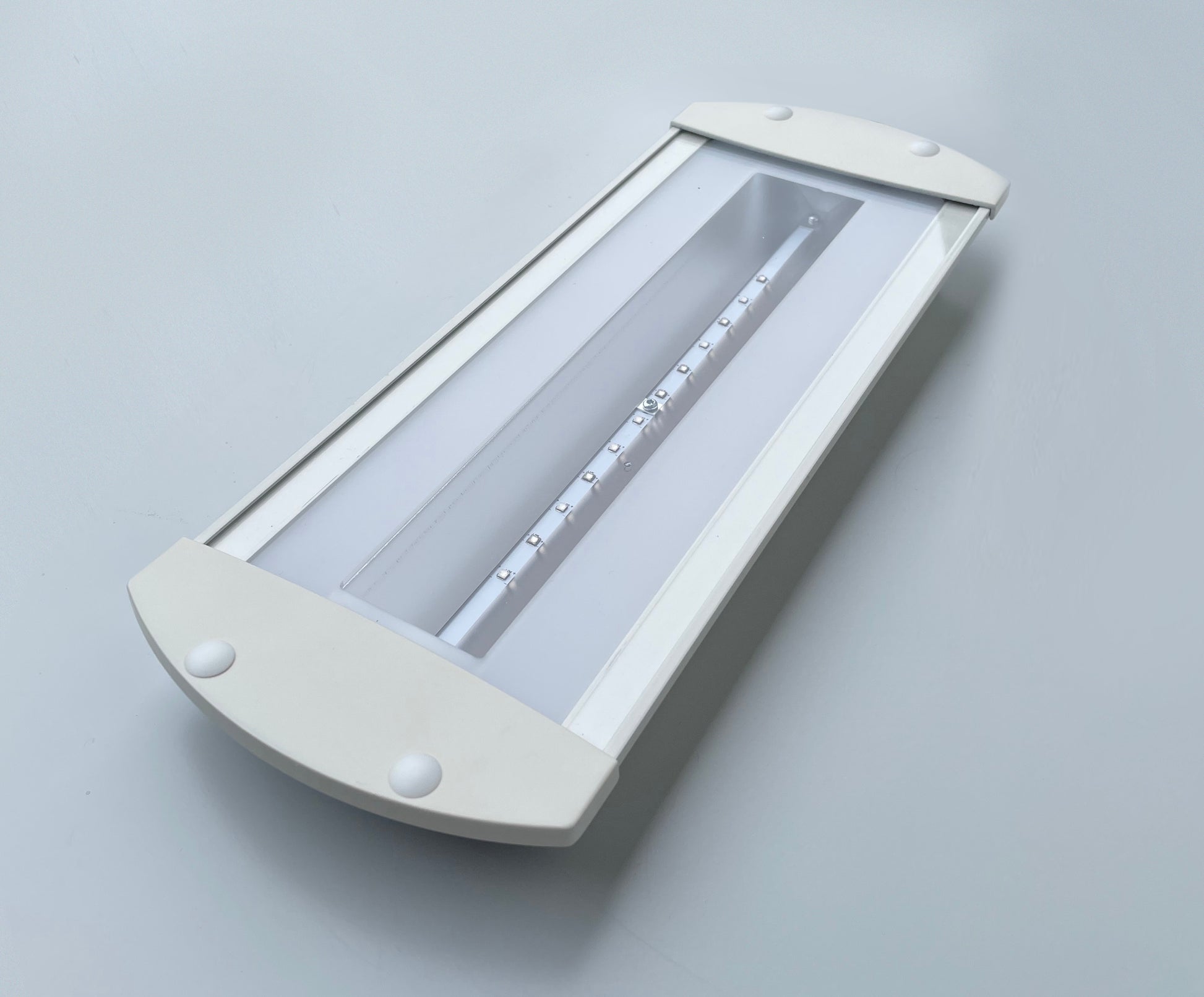

GAD TRI-MODE Ambulance disinfection device
GAD TRI-MODE Ambulance disinfection device
NEW! Spectral GAD is a tri-mode blue light disinfection device for ambulances: white light, trauma light and blue light disinfection in same. The device is available for 12 VDC and 24 VDC systems.
🖶 Print datasheet
| Name: | SPECTRAL GAD26 | ||
| Ordering code: | 12 VDC: 20701 24 VDC: 20871 |
||
| Features | MWHI blue light disinfection | White | Trauma |
| Power consumption: | 26 W (12 VDC) 27 W (24 VDC) |
12 W (12 VDC) 13 W (24 VDC) |
0.5 W (12 VDC) 1 W (24 VDC) |
| Luminous Flux: | - | - |
- |
| Colour temperature: | - | 4000 K | - |
| CRI: | - | >90 |
- |
| Weight: | 0.86 kg | ||

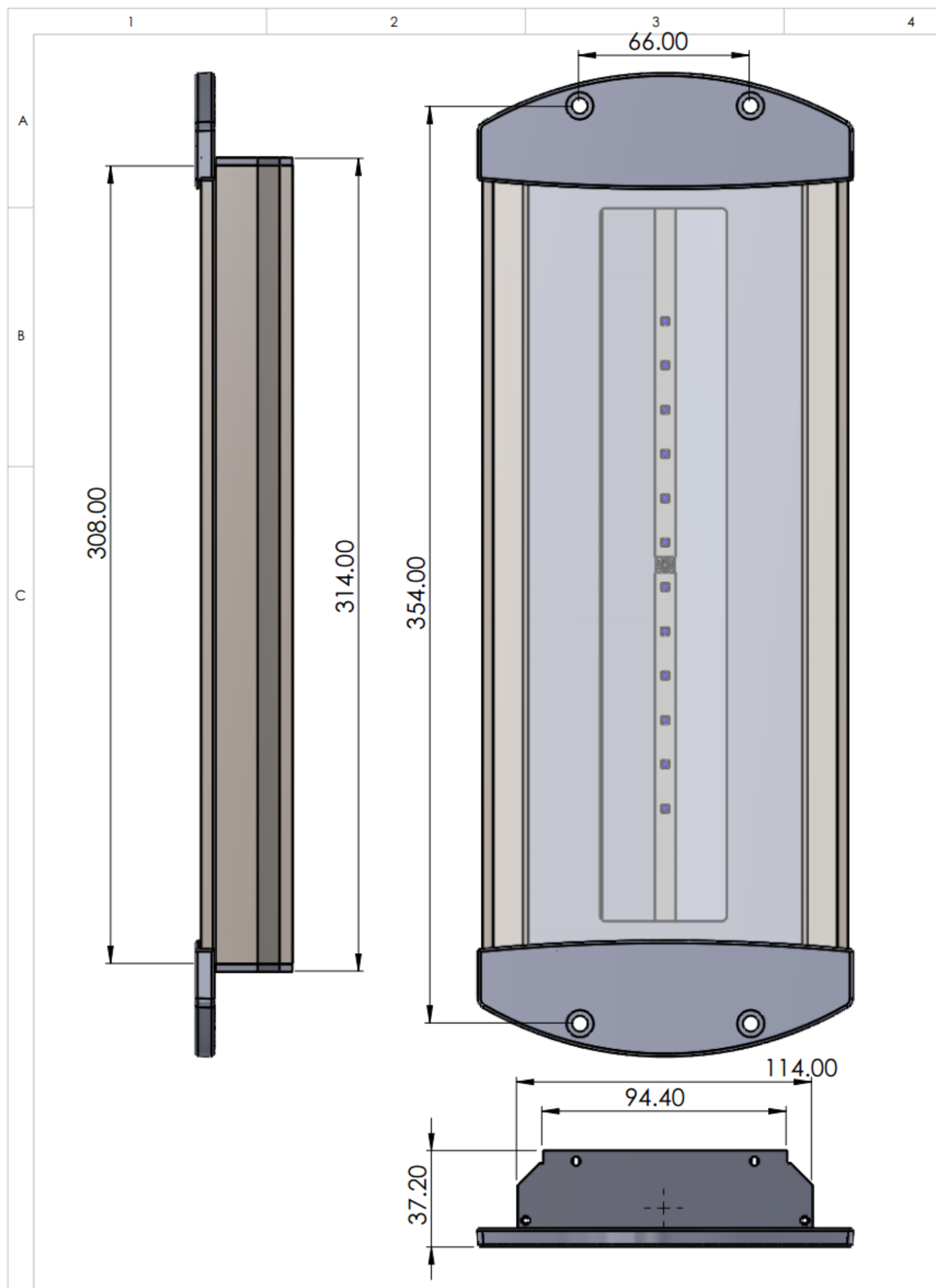

| Dimensions: | 145 x 380 x 35 mm | ||
| Average lifetime: | 50 000 h | ||
| Operating temperature: | -30 - +40°C | ||
| Beam angle: | 92° | ||
| Protection class: | IP40/20 | ||
| Materials: | Aluminium + Plastic | ||
| Installation: | Screws or rivets | ||
| Control method: | on/off External dimming control with PWM possible. |
||
| Warranty: | 1 year. Extended warranty available. | ||
| Certifications: | CE | ||
| BLH risk group according to IEC 62471: | With clear light cover: RG2 (moderate risk) < 533 mm, RG1 (low risk) ≥ 533 mm With milky diffuser: RG1 (low risk) |
||
Product specifications are subject to change.
