Product description and specifications

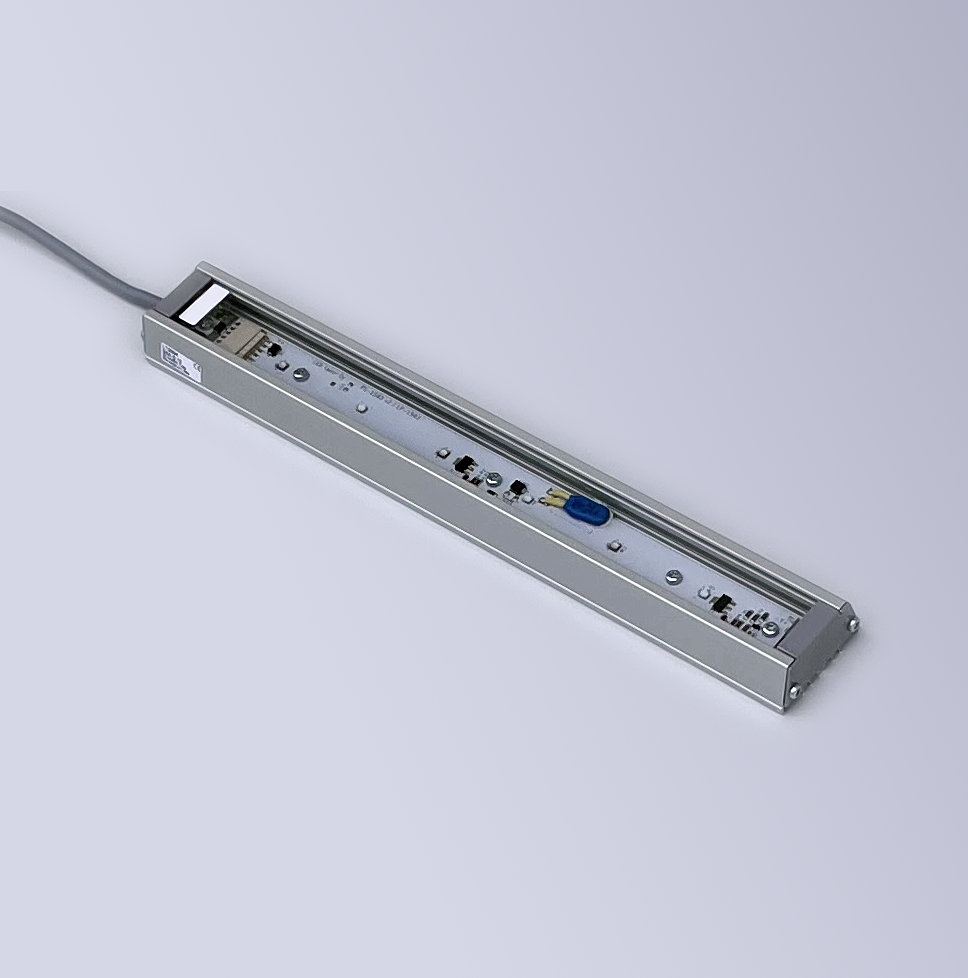

Spectral GEA is a single-mode blue light disinfection device for compact installations inside equipment with 12 or 24 VDC supply: Lab equipment, machines, and vehicles. It's available for 12-volt and 24-volt systems and provides disinfecting blue light only. The device has onboard overheat protection circuit and comes with a 500 mm open ended cable. Available in several lengths and power ratings (see table at bottom of page).
| Name: |
SPECTRAL GEA-D |
| Product code: |
12 VDC: LTI2094, 24 VDC LTI1943
See code list at bottom of page |
| Features: |
MWHI blue light disinfection, overheat protection |
| Input voltage: |
Available as 12 VDC and 24 VDC variants |
| Power consumption: |
12 W |
| Weight: |
220 g |
| Dimensions: |
L 335 x W 43 x H 21 mm
For other lengths, see table below. |
| Average lifetime: |
50 000 h |
| Operating temperature: |
0 - +40°C |
| Beam angle: |
120° |
| Protection class: |
IP20 |
| Materials: |
Aluminium body (alloy 6063 T6) + steel ends + Plastic (pc) diffuser |
| Installation: |
Screws, or alternatively with fastening clips |
| Control method: |
on/off |
| Warranty: |
1 year. Extended warranty available. |
| Certifications: |
CE |
| Device name |
Prod. number |
Length (cm) |
Input power (W) |
| GEA-D-12 |
LTI2094 |
30 |
12 |
| GEA-25-12 |
LTI2001 |
55 |
24 |
| GEA-50-12 |
LTI2018 |
100 |
48 |
| (GEA-100-12*) |
(LTI2025) |
200 |
96 |
| (GEA-150-12*) |
(LTI2032) |
300 |
144 |
| GEA-D-24 |
LTI1943 |
30 |
12 |
| GEA-25-24 |
LTI1950 |
55 |
24 |
| GEA-50-24 |
LTI1967 |
100 |
48 |
| (GEA-100-24*) |
(LTI1974) |
200 |
96 |
| (GEA-150-24*) |
(LTI1981) |
300 |
144 |
* Special lengths, only available in volume orders, longer delivery time.
