Product description and specifications
The SPECTRAL L-series blue light disinfection devices are the cornerstones of retrofit decontamination system installations in demanding environments: Hospitals, laboratories, cleanrooms, food processing, manufacturing - and all other spaces with high hygienic requirements. The L200 is our most powerful fixed-installation disinfection device.
| Name: |
SPECTRAL L100 |
SPECTRAL L200 |
| Ordering code: |
14551 (WW), 25131 (MW) |
14171 (WW), 27671 (MW) |
| Features: |
MWHI blue light disinfection |
| Supply voltage: |
230 VAC, 50 / 60 Hz |
| Power consumption: |
102 W |
204 W |
| Weight: |
2,8 kg |
6 kg |
| Dimensions: |
L650 x H59 x W90 mm |
L1200 x H59 x W90 mm |
| Average lifetime: |
50 000 h |
| Operating temperature: |
0 - +40°C |
| Beam angle: |
MW 70° / WW 120° |
| Protection class: |
IP44
Special version available with IP64+extra sealing |
| Materials: |
Aluminium + Glass
Polycarbonate lens available for the food industry |
| Installation: |

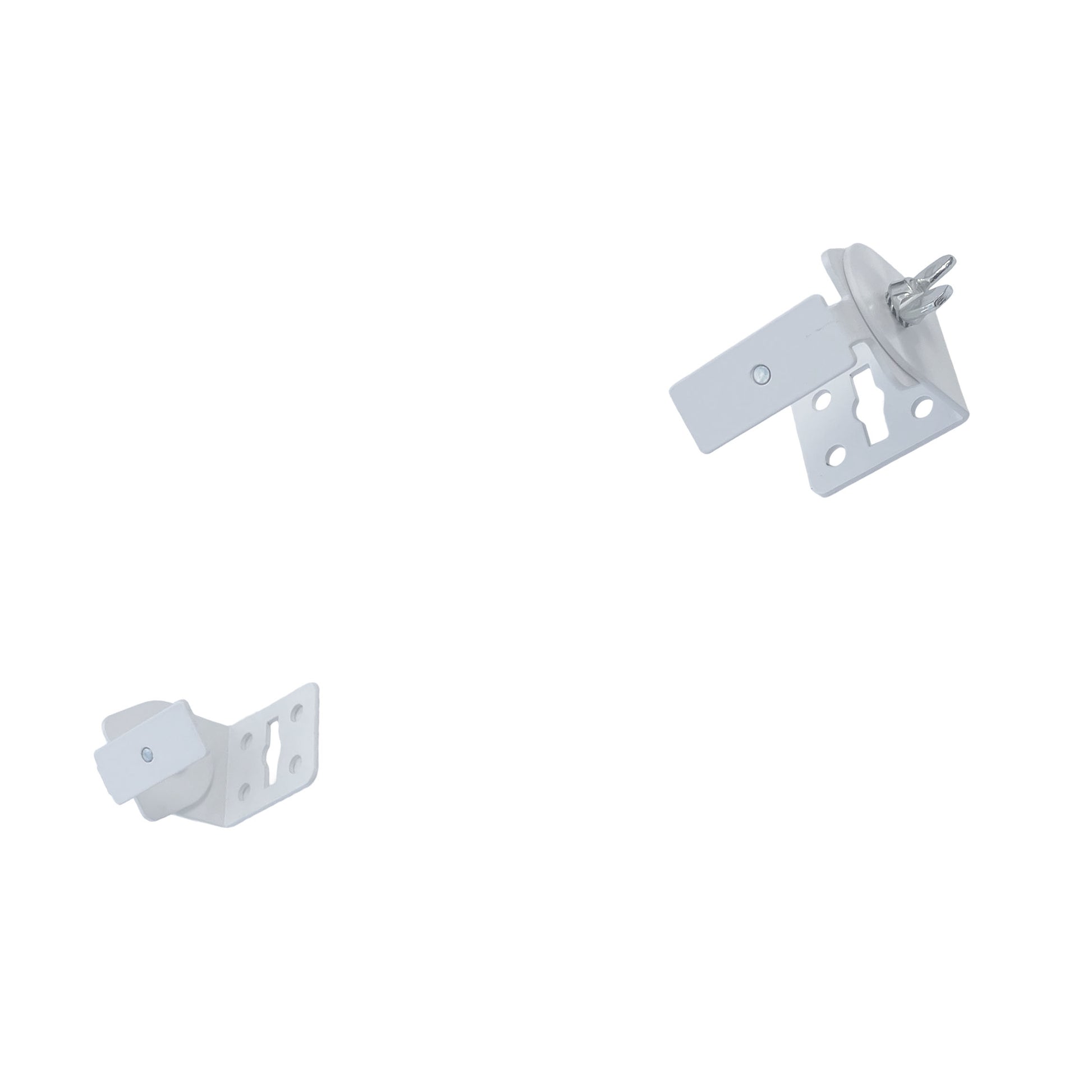

Tilting brackets (included), or suspension wires (not included) |
| Control method: |
DALI, on/off or SwitchDim |
| Power cord length: |
2 m, open ended wires |
| Warranty: |
1 year. Extended warranty available. |
| Certifications: |
CE |
| BLH risk group according to IEC 62471: |
Clear polycarbonate, WW variant: RG2 (moderate risk) < 415 mm, RG1 (low risk) ≥ 415 mm |
